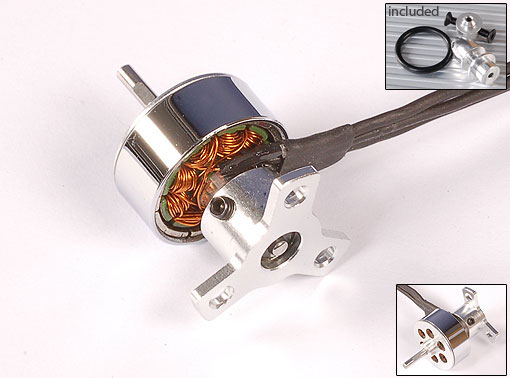

35WATT Micro Outrunner
Micro sized motor. Tightly hand wound with thick guage copper. Well machined and balanced. Prop driver and saver included. Spec. Model: 1811-2000Kv Weight: 10g (With wires and mount) Suggested Prop: 7x5 (Max) Voltage 7.4v No Load Current: .4a Thrust: 130g / 5000rpm Peak Eff Current: 5.5A Shaft: 2mm Diameter: 18mm OUR PRICE £11.99 Length: 30mm (including mount & shaft)
Typical test findings:- GWS 7035 9000rpm, 4 amps, 7.5 volts
GWS 6030 9300 rpm, 3.6 amps and 7.1 volts
GWS 5043 - 3.5A, 4.0 oz thrust
GWS 5030 1000RPM, 3 amps, 7,5 volts 4.4 oz thrust
GWS 4540 - 3.0A, 3.25 oz thrust
Package price (Motor / 10A ESC / Prop £24.49
