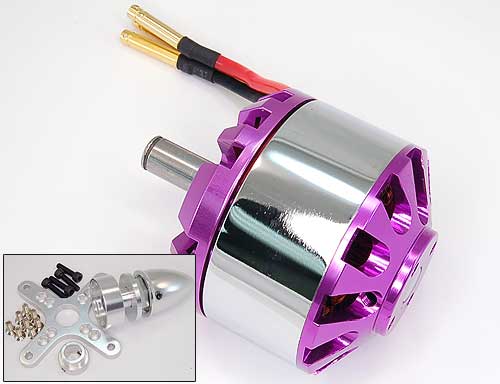

Voltage Range: 10-37v Kv: 250RPM/v
Thrust: 6,000 ~ 8,500g
Weight: 485g
Shaft: 10mm
Power: 2400W
ESC: 90A or larger
Suggested Battery Config:  6~10 cell lipo. 8-10 S give great results (most people use 4/5S packs in series)
Equivalent: .90 to 1.20 glow engine

                           OUR PRICE £68.99

Typical performance figures from user reports:- 18x10 APC 10S, 1800watts

                                                                        18x10 APC 8S, 1200watts

                                                                        22x8 MenZ 8S, 1400Watts

                                                                        18x8 APC on 10S will hover a 5Kg model @ half throttle!

  Figures from our own tests:- 18x10 APC-e 29v 41A 1250Watts   6000RPM

                                              19x10 APC-e 27v 43A 1300Watts 5300RPM

                                              19x12 APC-e 22v 46A 1250Watts 5400RPM

 Tests carried out using 30 NiMh 3300 cells  .

We suggest using Turnigy100A HV Esc (£98.61) and 2 x  4 cell 3200 Li-Po (approx£140) to complete the package
