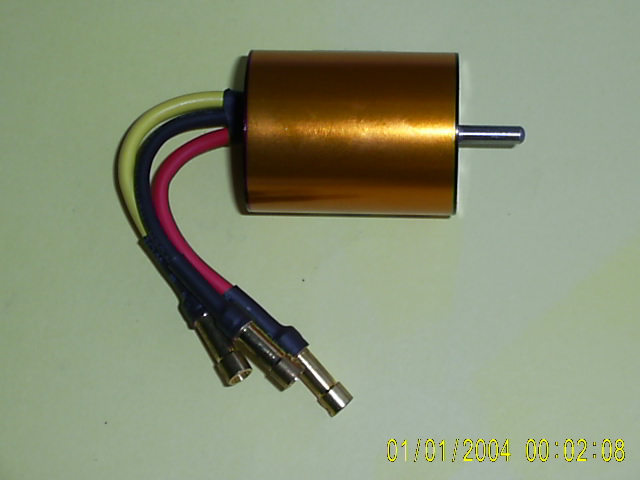

Concept 2835 2700Kv and 3900Kv Brushless Motor






Motor Size: 2835  2700kv

  • ESC Required: Min 25A
  • Voltage Range: 6~12v
  • No Load Curr: 1.2A
  • Max Load: 35A
  • Diameter: 28.2mm Length: 37mm Front Mounting Hole Distance: 19mm, Mount Thread: M3,
  • Shaft Diameter: 3.2mm Shaft Length: 12mm
  • Weight: 102grams Prop range 5x5-6x4,
  • Typical performance figures:- APC 6x4 9.97v 23A 223watts 17070RPM, similar readings on APC 5x5, Graupner 5.2x5.2 9.6v 21.5A 206watts 17520RPM.
  • Motor Size: 2835  3900kv
  •  ESC Required: 40-60A Voltage Range: 6~12v No Load Curr: 1.2A
    Max Load: 40A Diameter: 28.2mm Length: 37mm Front Mounting Hole Distance: 19mm, Mount Thread: M3,
  • Shaft Diameter: 3.2mm Shaft Length: 12mm
  • Weight: 102grams Prop range 4.2x4.7-4.75x4.75 max! or ducted fan
  • . Typical performance figures:- APC 4.7x4.7 3s 55A! 28500RPM, cut down to 4.2x4.7 40A /2700RPM. APC 4.1x4.1 3S 29A 30000+ RPM, MeMoTec mini fan 3S 3300mAh (40-60A esc req) 33A 6mins duration on full throttle.
  •        OUR PRICE £22.75
    		•
