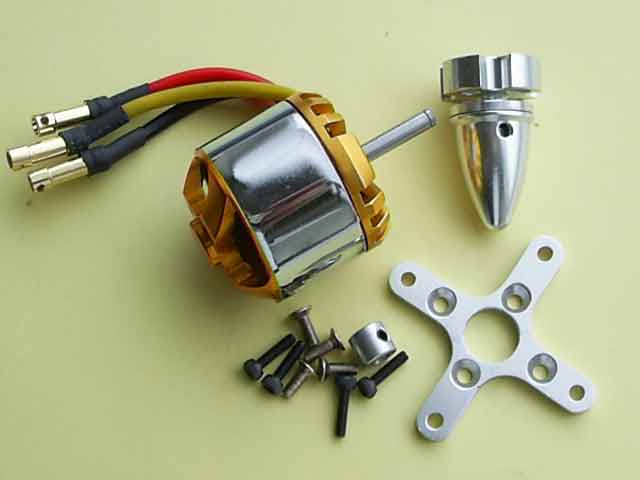

        300watt 20/25 OUTRUNNER

   A good sized motor with an excellent finish and quality internals.
    Input Voltage : 7.4V~11.1V (2~3S Li-po)
  Kv : 1450rpm/V �} within 10%
  Max. efficiency current : 15~25A
  Current capacity : 35A/30s
  Dimensions : 35mm X 36mm / 1.38in X 1.41in
  Shaft diameter : 4mm / 0.16in
  Weight : 106g / 3.74oz
  Number of poles/magnets : 14
  Recommended model weight : 1000~1900g / 35~67oz
  Power equivalent : .25 to .30 IC  glow engine
  Suggested propeller: 9x6

  OUR PRICE   £19.99        Excellent value for money equivalent to AXI 2814 / Energ C3510 (1350kv)  complete with fitting kit and adaptors

                        Typical performance figures:- 9x6 APC prop on 11.1v 380watts

                                                                     9x4.5 prop on 11.1v, 26Amps

                                                                     8x3.8 prop on 11.1v 350Watts

             Actual figures obtained by our test:-  8x4 APC 9.4v 31A 290Wattts 13000RPM

                                                                     9x4.5 APC 10v 30A 300Watts 11000RPM

                                                                     9x6 APC 9.4v 32A 300Watts 10200RPM

  We suggest using Turnigy 40A Esc (£29.99)  and 3 cell 2200 Li-Po (£31.99) to complete the package

  Total price including 3.5mm gold connectors and 9x6 APC prop  £85.00
