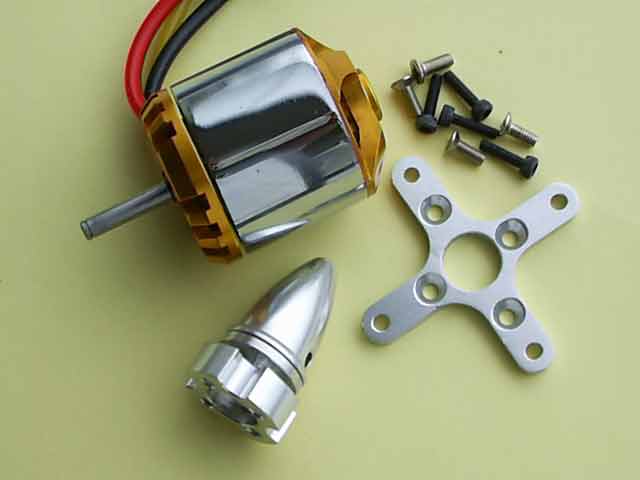

         450-550watt 35+



A good sized motor with an excellent finish and quality internals.
Input Voltage : 7.4V~14.8V (2~4S Li-po)
Kv : 1450 rpm/V within 10%
Max. efficiency current : 22~35A
Current capacity : 45A/30s
Dimensions : 35mm X 42mm / 1.38in X 1.65in
Shaft diameter : 4mm / 0.16in
Weight : 132g
Number of poles/magnets : 14
Recommended model weight : 1000~2300g / 35~81oz
Power equivalent : .30+ IC  glow engine dependant on operating voltage
Stator Dimensions: 28x20mm

OUR PRICE   £24.99        Excellent value for money equivalent to AXI 2820 / Energ C3510 complete with fitting kit and adaptors Prop range as below, Use good quality well balanced props for best performance.

   Performance figures obtained from our tests:-1450Kv (A version) Take care to check current draw if using 4s pack

9 x 4.5 APC 4S 53A 12.5v 14190RPM 670Watts "BE CAREFULL"

8 x 6 APC 4S 56A 12.0v 12870RPM 660Watts "BE CAREFULL"

9 x 6 APC 3S 42A 10.0v 11650RPM 480Watts

9 x 4.5 APC 3S 38A 10.3v 12120RPM 400Watts

8 x 6 APC 3S 40A 10.0v 11560RPM 400Watts

Also available to in 1100Kv (C version)

 11 x7 APC 4S 40A 12.5v 9000RPM 500Watts

10 x 5 APC 4S 35A 12.6v 10800RPM 440Watts

9 x 6 APC 4S 34A 13.2v 11500RPM 442Watts

12 x 6 APC 3S 44A 440Watts

11 x 7 APC 3S 44A 10v 8600RPM 440Watts

Also available to in 1000Kv (D version)

11 x7 APC 3S 44A 10.0v 440Watts

12 x 6 APC 3S 37A 360Watts

9 x 6 APC 4S 34A 13.5v 440Watts

10 x 5 APC 4S 35A 440Watts

11 x 7 APC 4S 40A 13v  500Watts



We suggest using a 40-60A Esc (£24-£37) and Turnigy 3 cell 3300 Li-Po (£28.99 to complete the package Total price including 3.5mm gold connectors and APC prop  £92 or less

          Use of a Wattmeter to measure working current and set up the power train is highly recommended, and is the only way to ensure peace of mind that all components are operating within limit!.
