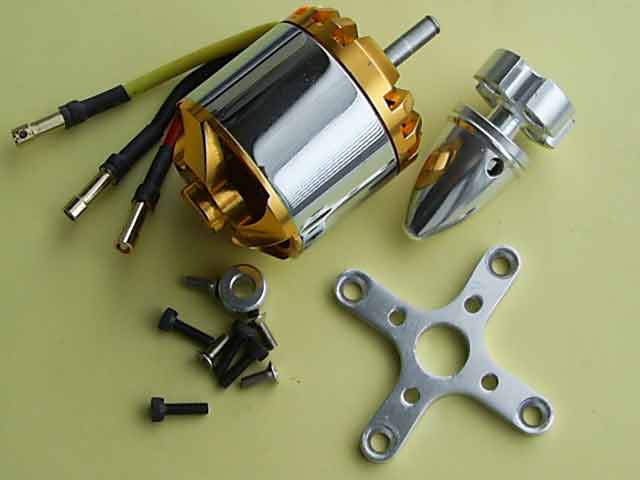

        600Watt 40



A good sized motor with an excellent finish and quality internals.
Current @ max efficiency :38A
Max Load : 43A
Kv : 700
Weight : 195gr
Pull/Thrust : 900~2100gr
Prop size: 11x5.5 or 12x8
Voltage Range: 9~15v
No Load Current : 3.4A
Shaft: 5mm
Resistance: 0.0327ohms
Max Efficiency: 82%
                                                                        Power equivalent : .30 to .40 glow engine
                                                                        Ideal for planes up to 5lbs (1~21.kg)  in weight.

                                                                        Mount holes are 25mm apart and take 3mm screws.










                                                  OUR PRICE  £28.99
                    Excellent value for money equivalent to AXI 4120 / Energ  C4220 (9000kv) Recommended props:12x6-14x7

Typical figures from user reports

14x7 APC on 4S, 49A = 686Watts

13x8 APC on 4S, 47A = 700Watts

13x.6.5 APCon 4S 42A = 650Watts

Actual figures from our tests:-

13x10 APC-e  14.7v 44A 680Watts 6800RPM

13x8 Master Electric(wood) 13v 48a 630Watts 7000RPM



We suggest using Turnigy 60A Esc (£39.99)

 and Electrolite 4 cell 3200 Li-Po (£64.99) to complete the package

Total price including 3.5mm gold connectors and 13 x10 APC prop £137
