     AP-900DF fan unit made of quality material to produce reliable performance.
● Maximum static thrust
● High efficiency at all speeds
● Smooth air flow (Streamlined Cones)
 Use Brushless motors with a KV 900 - 1400 for the maximum performance.
The output performance will depend on the motor and battery installed in this fan unit.
The Maximum motors uses external diameter 39 mm.
We recommend Hacker B50 motors for this unit, Please contact us for a competitive package price for motor and fan.
Technical Data
- Outside Diameter : 96.62mm
- Rotor DIameter : 90mm 5 blades
- Weight : 136g All parts - no motor
- Motor Shaft : 5mm
- Rotor Shaft : 8mm
- Static thrust at max power: 20N
- Max RPM : 45,000
- Max Power : 1000W

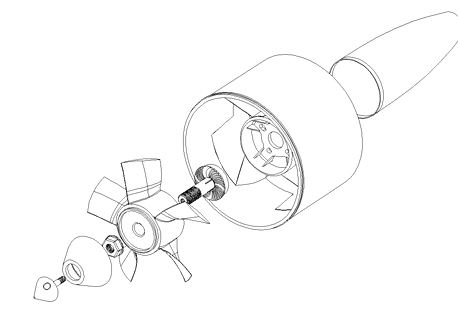

ap900gg.jpg      OUR PRICE  £ 35.00
