    GRM L W D A Max   BEC CELLS PROG GOV BR SOFT Time Freq PROTECTION

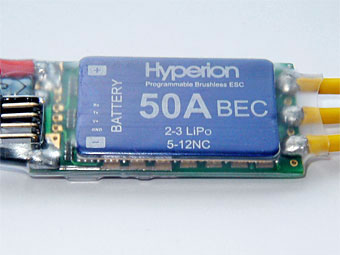

Hyperion Titan 50 BEC 41.3 58 27.5 7.5 50 60 BEC 1.5A 2-3 Lipo, 5-12 NiCD TX, PC, Emeter Yes Yes Yes Yes 8k/16k motor direction, over temp

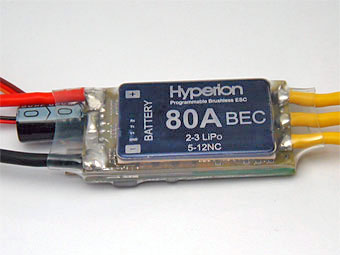

Hyperion Titan 80 BEC 52.5 57 28 11.4 80 96 BEC 1.5A 2-3 Lipo, 5-12 NiCD TX, PC, Emeter Yes Yes Yes Yes 8k/16k motor direction, over temp
Hyperion Titan 50 OPTO 38 58 27.5 7.5 50 60 OPTO n/a 2-5 Lipo, 5-18 NiCD TX, PC, Emeter Yes Yes Yes Yes 8k/16k motor direction, over temp

           All the Hyperion brushless controllers have a rich set of programming features which can be set either by stick commands from your transmitter, via the programming interface in the Hyperion Emeter (ESC program cable required) or from your PC (Data cable required).

    The processor is a well-proven type, and the software is the result of nearly two years of refinement and testing. The result is extremely smooth motor starts, no matter the motor type, and high efficiency at all throttle positions.

  • Over Temperature protection: Soft Cutoff at 80C
  • Programmable: Brake ON/OFF, Voltage Cutoff, Soft Start ON/OFF, Switching frequency, Timing, Cutoff mode, Governor mode.
  • Additional programming with Emeter: NiCD/NiMH voltage per cell cutoff voltage, Lithium voltage per cell cutoff voltage

We have a limited number of these controllers on Special offer @ £35.95 for 50A (opto)
