New Hyperion EOS LBA10 Net - The Most
Powerful, Versatile Balance-Safety Adapter for
Lithium Packs - Max 6S, 10A rating - Network 2
units for 7S~12S balancing.

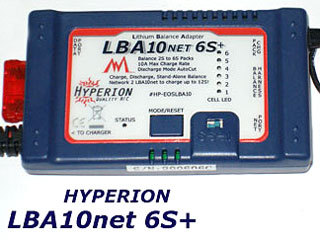

The Hyperion EOS Lithium Balance Adapter 10
(LBA10) is the newest, most feature-packed and
reliable lithium balancer on the market today,
and comes at a bargain price. Simply put, it is
the most powerful, versatile, and safest way to
charge your lithium packs today. A single LBA10
provides three ways to balance your lithium
packs from 2S to 6S, at a maximum of up to
10-ampere rate! (Charge mode, Discharge mode &
standalone mode)
Or, you can network two LBA 10 together with
NET cable and adapter pack #HP-EOSLBA10-MSC. Set
one LBA10 to Master and one to Slave mode.
Series the LBA input leads together, and connect
to a charger with appropriate S rating. Now you
can charge two packs of same cell type and
capacity (such as 6S and 6S) at the same time,
and every cell in both packs will be balanced to
the other when charging is done. Connect the
packs in series and fly, with balanced packs
from 7S to 12S in this way!
Or, say you have two 5S chargers, and want to
charge two 5S packs to connect and fly as 10S.
Use each LBA10 in Master mode, and connect each
to a separate charger and battery. When charging
is finished, Connect the two LBA10 together in
Master-Slave configuration, and connect them to
the just-charged lithium packs. The LBA10 will
work together until every cell in the two packs
are balanced together, then automatically shut
down. Takes only a few minutes. Now series the
packs together and fly in peace!
Each LBA 10 comes with balance harnesses for
2S and 3S packs. For 4S to 6S packs you will
need to order the appropriate optional
harnesses.
OUR PRICE £26.95
|
